Powder Coating Curing & Drying Ovens
Powder coating curing and drying ovens are industrial ovens that process at 160–220°C for permanent adhesion and curing of the coating after electrostatic powder application. Acrotech designs and manufactures box type, tunnel type, U-turn, thermal, UFK and spray line ovens suitable for different production capacities and part geometries. These ovens are specially engineered for uniform heat distribution, energy efficiency and long-lasting use.
Which Oven Model Should I Choose?
Box Type:
- Low-medium capacity
- Batch production
- Low investment cost
Tunnel / U-Turn:
- High capacity
- Continuous production line
- Conveyor system
Thermal / UFK:
- Special applications
- Aluminum hardening
- Pallet system
Explore Oven Models
Get a Quote for Your Powder Coating Oven Project
Custom oven system design and free quotes for your projects.
GET A FREE QUOTE WHATSAPP CONTACTWhat Is a Powder Coating Oven and How Does It Work?
A powder coating oven, also called a curing oven, is where the applied powder melts, flows and cures into a hard, durable film. Most powders cure at about 160–220°C for 15–30 minutes. The oven must bring every part to this temperature evenly and hold it there for the full cure time.
In Acrotech ovens, a thermoblock heating unit mounted at the back of the oven raises the temperature from ambient to +230°C. Tunnel ovens work in the 0–250°C range. Heat exchangers are made of 310S stainless steel resistant to 1000°C, and the panels are insulated with 150 mm rock wool at 450 kg/m³ to keep heat inside and energy use low.
Powder Coating Oven Types
1. Box Oven (Batch Oven)
The box oven works in batches. Parts are loaded on hangers or trolleys, cured and taken out. It has the lowest investment, about 40–50% lower than a continuous line, and works well with manual booths at low to medium capacity. Box oven details

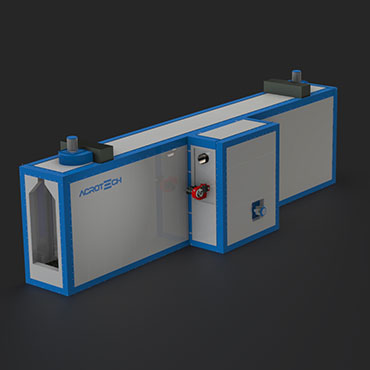

2. Tunnel Oven
In a tunnel oven the overhead conveyor enters at one end and exits at the other. It is built for continuous, high-capacity lines. Oven length is calculated from line speed and curing time. Tunnel oven details
3. U-Turn Oven
The conveyor makes a U inside the oven, so entry and exit are on the same side. You get the same curing time in much shorter floor space, with less heat loss. U-turn oven details

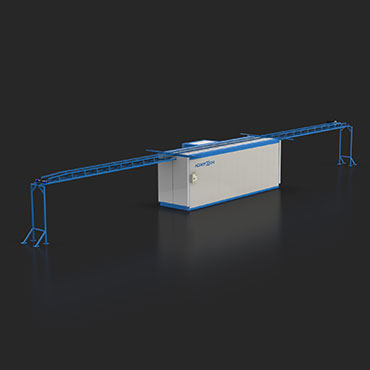

4. UFK Pallet-Conveyor Oven
A semi-automatic oven with a pallet conveyor mounted on the oven ceiling. Parts are grouped on pallets and fed in automatically. It is the bridge between box ovens and continuous ovens. UFK oven details
5. Thermal Oven for Aluminium Ageing
Used for ageing (hardening) aluminium profiles. After ramp-up, the oven holds the profile temperature within ±5°C. Thermal oven details
Box, Tunnel, U-Turn or UFK: Comparison
| Criterion | Box Oven | Tunnel Oven | U-Turn Oven | UFK Oven |
|---|---|---|---|---|
| Production mode | Batch | Continuous | Continuous | Semi-automatic |
| Capacity | Low to medium | High | High | Medium |
| Conveyor | Hangers or trolleys | Overhead conveyor, straight through | Overhead conveyor, U-shaped route | Pallet conveyor on oven ceiling |
| Footprint | Compact | Long | Short, entry and exit on one side | Compact |
| Investment | Lowest | Higher | Higher | Between box and continuous |
How to Choose a Curing Oven
- Capacity and part size: Parts per hour and your largest part decide the oven type and inner dimensions.
- Cure time and temperature: Take these from your powder's technical data sheet; they set oven length or batch time.
- Energy source: Natural gas, LPG, diesel or electric.
- Heat distribution and insulation: Even air circulation and good insulation give consistent quality and lower energy use.
- Temperature control: Stable control keeps every batch within the powder's curing window.
- Drying oven: After pre-treatment, parts need a drying oven before the booth. For wood, see our wood drying ovens.
The Oven Within the Powder Coating Plant

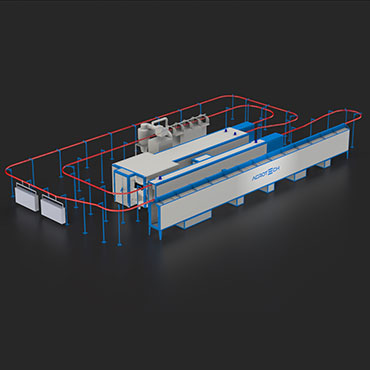

The powder coating oven must match the rest of the line. Parts are cleaned in the surface treatment line, coated in the powder coating booth and carried by the conveyor system. Acrotech engineers all of these as one powder coating plant with one capacity calculation. For liquid paint, see our wet paint drying ovens.
Frequently Asked Questions
What affects the price of a powder coating oven?
The main factors are oven type (box, tunnel, U-turn, UFK), inner dimensions, required capacity, energy source, burner or heater capacity and whether the oven is part of a conveyor line. Send us your part sizes and capacity for a quote.
At what temperature and for how long does powder cure?
Most powders cure at 160–220°C for 10–30 minutes. The time starts when the part itself reaches the curing temperature. Always check the technical data sheet of your powder.
Should I choose a box oven or a tunnel oven?
A box oven fits batch production at low to medium capacity with manual booths, at the lowest investment. A tunnel oven fits continuous, high-capacity lines with an overhead conveyor. If floor space is short, a U-turn oven gives the same curing time in less length.
Is an electric or a gas oven better?
It depends on local energy prices. We compare the options for your location at the project stage.
Get a quote for your powder coating oven. Tell us your part sizes, capacity and preferred energy source, and our engineers will size the right curing oven for your line.
